Uplifter UPT150 Racelifter 3.0

Uplifter glass lifters

Uplifter Racelifter UPT150

Lifting capacity max. 150kg
Lifting height (vertical) 1.7m
Rotate materials up to 2.4m

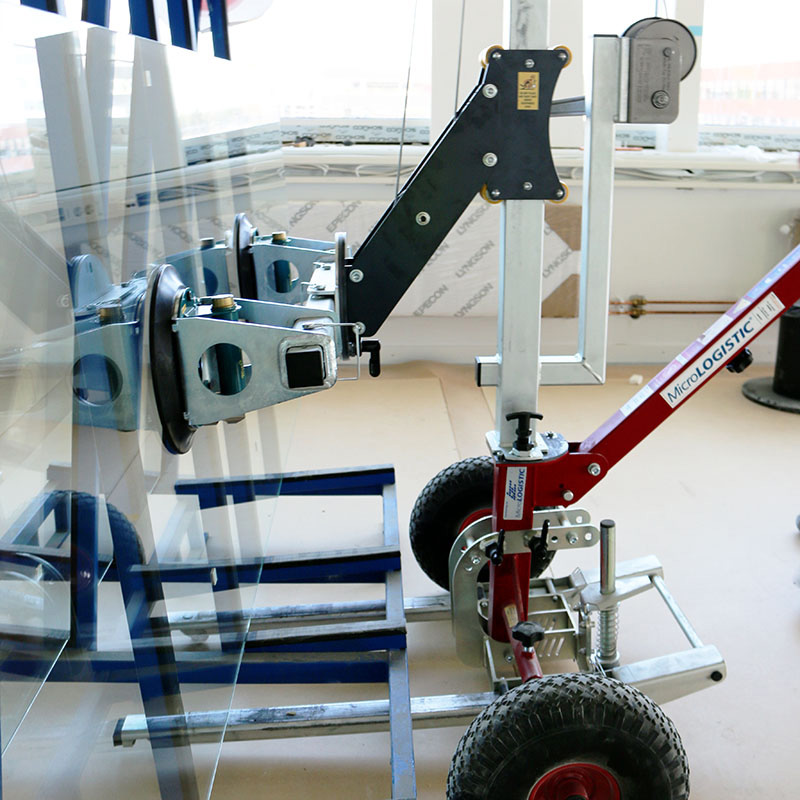

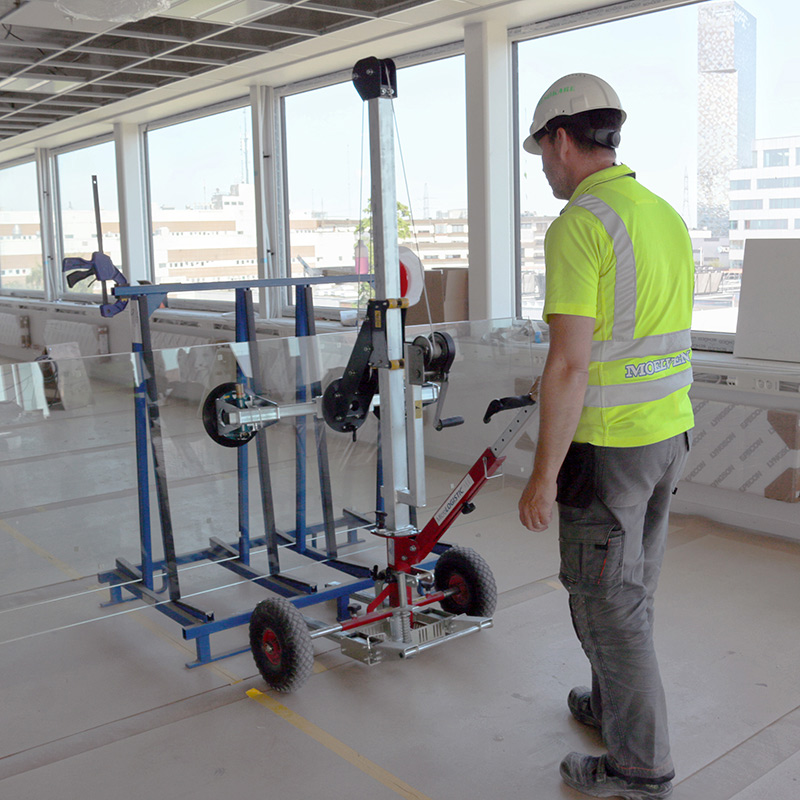

The Racelift 3.0 is a versatile one-man operation for doors, windows, glass, metal and wood on any construction site. This multi-faceted mounting device makes transporting construction elements child’s play. Construction elements up to 80 kg can be lifted and lowered by one person, and 2 workers can handle loads of up to 150 kg. The pole can be swivelled by 90° and the suction unit with its two built-in suction discs (diameter 230 mm) can be rotated by 360°. The non-slip handles are adjustable for the proper height and length, and the polyurethane tyres (diameter 350 mm) allow the device to safely drive over rough terrain. The Racelift 3.0 can easily and quickly be disassembled into 6 parts and fits into any boot.

Lifting Capacity

150kg

Vacuum Cups

2 pieces, ø 230 mm

Pole

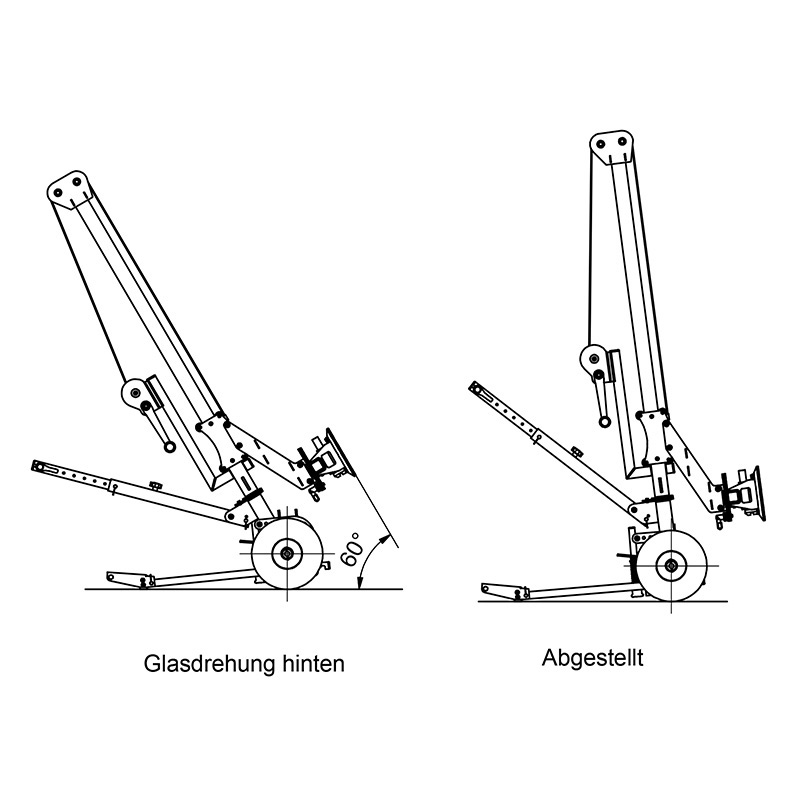

Pole swivelable by ± 90°

Suction Unit

Rotatable 360°

Total Weight

86kg

Total Width

675-905mm

Drive

Manual

Max. lifting height

1.7m

Tyres

PU-tires (ø 350 mm)

Optional

Side offset ± 65 mm, suction surface enlargement

* Further details, please contact PACECRANES.
† Due to improvements, the specifications are subject to change without notice.
