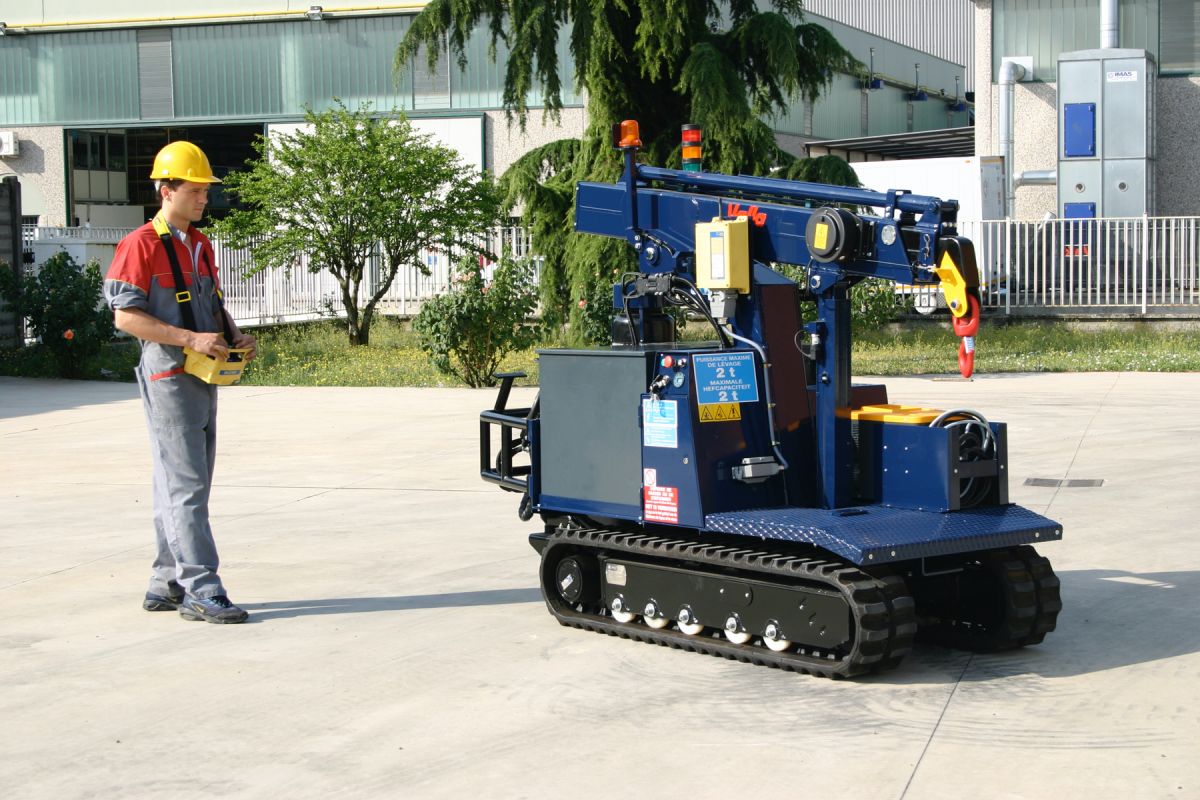

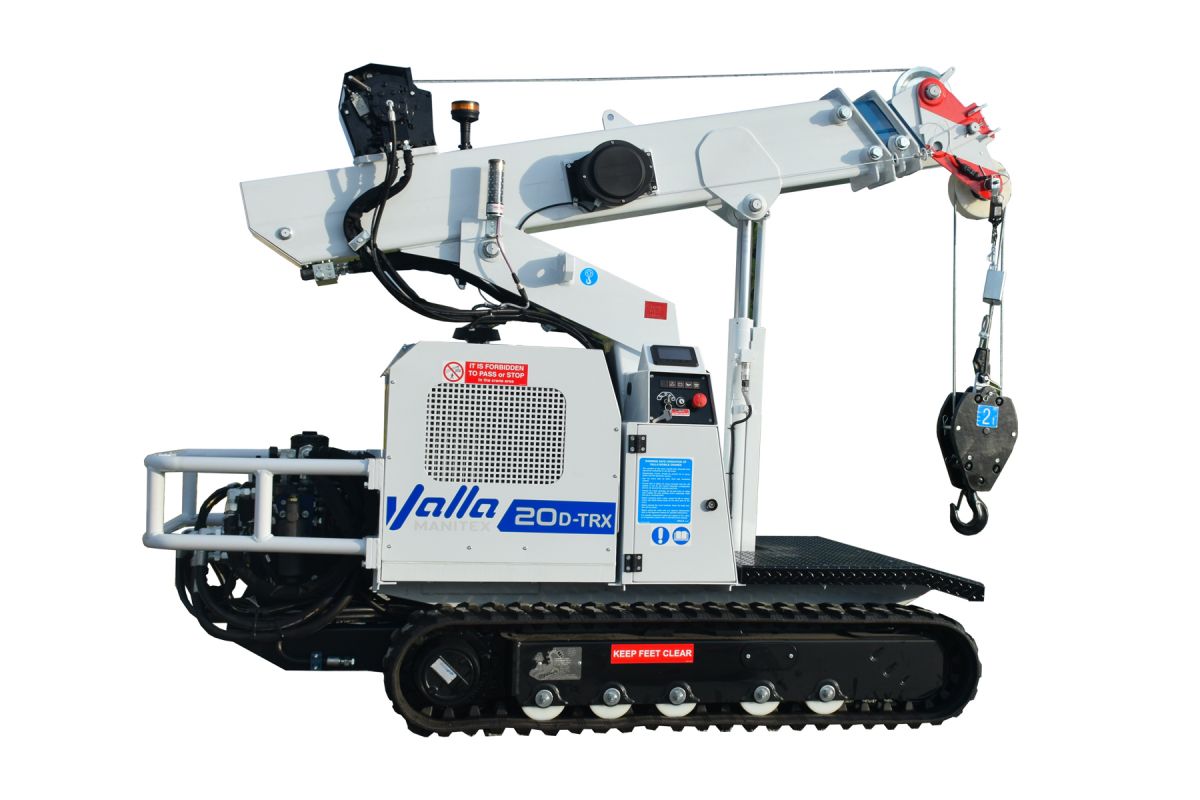

20TRX E-D Pick and Carry Crane
Capacity: 2 t
Width: 950 mm
Gross Weight: 1900 kg
Crane Frame
Fabricated from preformed and welded steel plate. Standard carry deck
Traction (E)
Electric motor AC 12 kW – 48 V
Engine (D)
26CV diesel, 3 cylinders in line, water cooled
Transmission
Automatic, hydrostatic. Max speed 2 km/h
Tracked Undercarriage
Rubber tracks
Hydraulic System
Gear pump, electric proportional distributor with remote control,
filter, safety valves on all boom operations. Max Hydarulic pressure 200 Bar
Boom
1 fixed, 1 hydraulically telescoping section and 1 manually telescoping. Adjustable nylon wear pads on the sides
LMI
Electronic Load Moment Indicator. Display showing lifted load, max allowed load, tilting percentage, operating radius, angle, telescope and light indicators on the operative mode
Total Weight
Approx 2100 kg (e) 2000kg (d)
Max Capacity
2000 kg
Optional
Man bucket, radio remote control, hydraulic winch, hydraulic chain hoist, manual jib extension, non-marking tracks
* Further details, please contact PACECRANES.
† Due to improvements, the specifications are subject to change without notice.
